CSK40P One Way Clutch Bearing Sprag Type Sealed P6 Precision

Changzhou Tianniu Transmission Equipment Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

CSK40P One Way Clutch Bearing Sprag Type Sealed P6 Precision

Brand Name : SUMA

Model Number : CSKPP

Place of Origin : Jiangsu, China

MOQ : 2

Price : $5.10-6

Type : sprag type

Precision Rating : P6

Seals Type : sealed

Material : GCr15

Weight : 0.06-0.49kgs

Inner Diameter : 15-50mm

Outer Diameter : 35-90mm

Torque : 17-230Nm

Dynamic Load : 3.28-19.53kN

Static Load : 0.86-17.68kN

Max Speed : 15000 min-1

Drag Torque : 0.5-10 Ncm

Bearing Length : 9-22mm

Bearing Width : 2-12mm

Bearing Thickness : 0.6-3mm

Contact Now

CSK 40 CSK40P One Way Clutch Bearing CSK40PP

Product Description

CSK series are sprag type one way freewheel bearings.

MODEL CSK / CSK...2RS / CSK...P / CSK...PP / CSK...P-2RS / CSK...PP-2RS
Structure Sprag type
Available Size ID 8-40MM, OD 22-80MM
Delivery time In stock
Package Tube / Carton - 19*14.5*7.5cm Box - 29*28*19 Box - Pallet or Customized
Payment Terms TT, D/P, D/A, Western Union, Paypal, Bank
Shipping Way By air ( TNT/ FEDEX / UPS / DHL) , By sea
Warranty 1 Year

CSK40P One Way Clutch Bearing Sprag Type Sealed P6 Precision

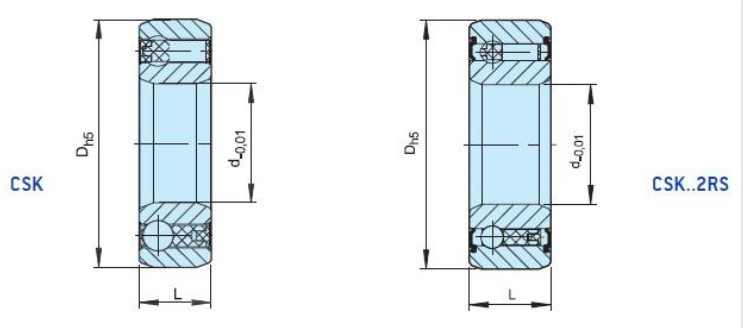

SPECIFICATIONS

Type Size Bearing series Dimension Bearing loads Weight Drag torque
dynamic static
CSK(KK) d TKN1) N max Outer Dia. Length C C0 TR
[mm] [Nm] [min-1] [mm] [mm] [kN] [kN] [kg] [Ncm]
8* 2.5 15000 22 9 3.28 0.86 0.015 0.5
10 6200 6.8 13000 30 9 4.5 1.56 0.032 0.36
12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 325 3000 80 22 15.54 12.25 0.5 7

Type Size Bearing series Bearing loads Weight

Drag

torque

dynamic static
CSK..P d TKN1) nmax D L b t C C0 TR
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 325 3000 80 22 15.54 12.25 0.5 7
CSK..PP 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 325 3000 80 22 10 3 15.54 12.25 0.5 7
45 _ 218 1600 85 19 12 2.5 18.36 15.35 0.44 9.3
50 _ 230 1500 90 20 12 2.5 19.53 17.68 0.49
CSK..P-2RS 12 9.3 10000 32 14 6.1 2.77 0.05 3
15 17 8400 35 16 7.4 3.42 0.07 4
17 30 7350 40 17 7.9 3.8 0.09 5.6
20 50 6000 47 19 9.4 4.46 0.145 6
25 85 5200 52 20 10.7 5.46 0.175 6
30 138 4200 62 21 11.7 6.45 0.27 7.5
35 175 3600 72 22 12.6 7.28 0.4 8.2
40 325 3000 80 27 15.54 12.25 0.6 10

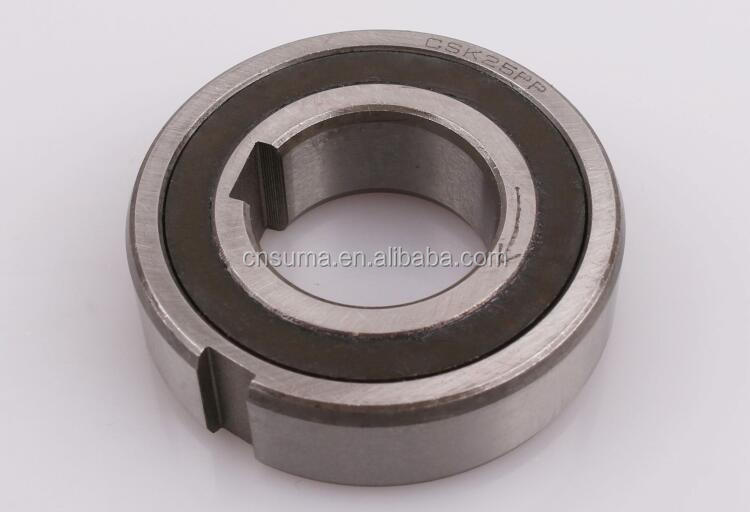

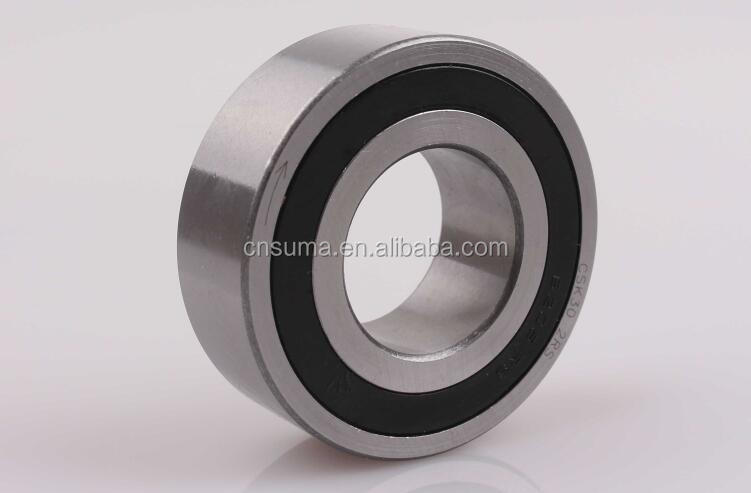

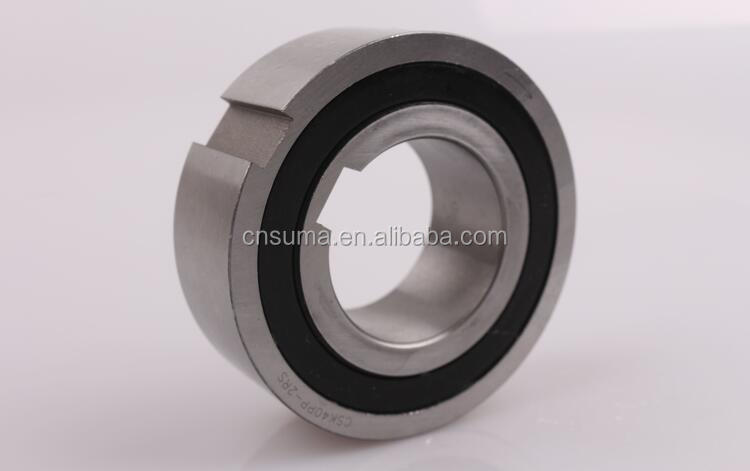

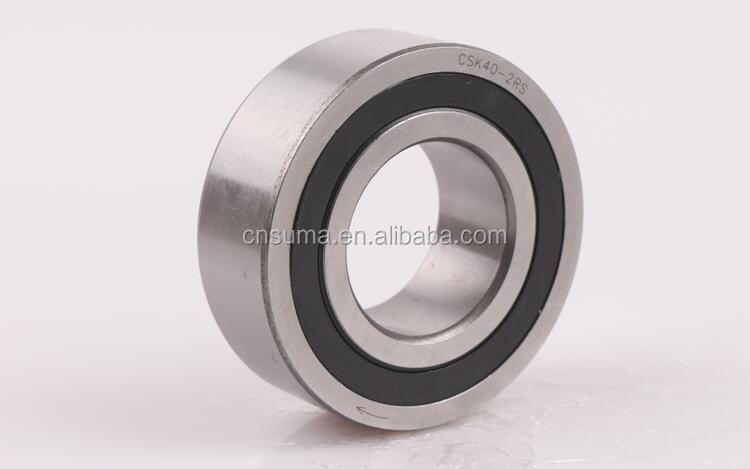

Detail Images

CSK40P One Way Clutch Bearing Sprag Type Sealed P6 PrecisionCSK40P One Way Clutch Bearing Sprag Type Sealed P6 PrecisionCSK40P One Way Clutch Bearing Sprag Type Sealed P6 PrecisionCSK40P One Way Clutch Bearing Sprag Type Sealed P6 PrecisionCSK40P One Way Clutch Bearing Sprag Type Sealed P6 Precision

CSK40P One Way Clutch Bearing Sprag Type Sealed P6 PrecisionCSK40P One Way Clutch Bearing Sprag Type Sealed P6 PrecisionCSK40P One Way Clutch Bearing Sprag Type Sealed P6 Precision

FAQ

Q: How do you pack the goods?

  • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
